Pipes

General Idea for Pipes in UNIX:

• The output of one program is the input of the other, and vice versa.
• Both programs run at the same time.
• Often, only one end of the pipe is used.

Bad/Naive Approach: Using Files

• Idea: Save output of first program to a file, use file as input for the second program.
• Why It’s Bad:
  • Slower.
  • Unnecessary use of disk.
  • No multitasking.

Design Philosophy of Pipes:

• Goal: Achieve complex tasks by combining individual utilities
• Pipes are usually chained together (redirection)
• Pipes follow the FIFO (first in, first out) mechanic
• Pipes can have multiple readers and writers
• Pipes are used to redirect the stdout of out one command to the stdin of another.
• If a process…:
  1. … tries to read data but nothing is available, UNIX puts the reader to sleep until data is available.
  2. … can’t keep up reading from the process that’s writing, the unread data goes into a buffer until it is read (pipe size).
     • If the pipe is filled up, UNIX will put the writer to sleep while the reader frees up space.

Examples: Using pipes

# Count number of lines the who command returned
who | wc -l
# Search for all entries in world file for net-im packages
cat /var/lib/portage/world | grep "net-im/"
# Sort list of users
who | sort

Beginner Mistake: | v.s. >

Don’t confuse pipes and redirection!

• Pipes are a UNIX feature for creating data pipelines between processes,
• Redirection is a shell feature for writing the output of processes into files.

Filters

Filters: Class of UNIX utilities that read from standard input, transform the file, and write to standard out.

• Filters can be thought of as data-oriented programming.
• Each step of the computation transforms data stream.
• Text processing commands are often implemented as filters.
• Users can use file redirection and pipes to set up stdin and stdout how they want.
• Filters don’t modify the original file, they output the modified data into stdout
  • e.g., sort file.txt doesn’t modify the contents of file.txt.

Popular UNIX Filters

• cat: Read lines from stdin (and more files), and concatenate them to stdout.
• more/less: Read lines from stdin, and provide a paginated view to stdout.
• head: Read the first few lines from stdin (and more files) and print them to stdout.
• tail: Read the last few lines from stdin (and more files) and print them to stdout.
• tee: Copy stdin to stdout and one or more files
• cut: Cut specified byte, character or field from each line of stdin and print to stdout.
• paste: Read lines from stdin (and more files), and paste them together line-by-line to stdout.
• wc: Read from stdin, and print the number of newlines, words, and bytes to stdout.
• tr: Translate or delete characters read from stdin and print to stdout.
• sort: Sort the lines in stdin, and print the result to stdout.
• uniq: Read from stdin and print unique (that are different from the adjacent line) to stdout.
• grep: Find lines in stdin that match a pattern and print them to stdout.
• sed: Streamline Editor used to edit text in non interactive mode.
• awk: Powerful editing tool for files with programming features

More on cat

cat copies its input to output unchanged (identity filter). When supplied a list of file names, it concatenates them onto stdout.

Some Options (Flags):

• -n: Number output lines starting from 1.
• -v: Display control-characters in visible form (e.g., ^M)

More on more

more is like cat, except it displays content page-by-page.

• Example: more +4 foo.txt displays file content starting at line 4.

More on less

less lets you view the contents of a file similarly to more, except it doesn’t load the entire file at once.

• less is faster than more and has a larger number of features.

More on head and tail

head displays the first few lines of a file.

Format: head [-n] [filename...]

• -n: Number of lines to display (default: 10)
• filename: List of filenames to display
  • When more than one filename is given, start of each listing begins with ==>filename<==.

---

tail displays the last few lines of a file.

Format: tail -number [rbc] [f] [filename]

• -number: Number of lines to display (default: 10)
• b,c: Units of lines/blocks/characters
• r: Print ins reverse order (lines only)

---

Example: Using head and tail to get lines 4—10 of a file

tail -n +4 patch.sh | head -n 6

More on wc

wc counts the number of lines, characters, or words.

• By default, prints number of all three.

Options:

• -l: Count lines
• -w: Count words
• -c: Count characters

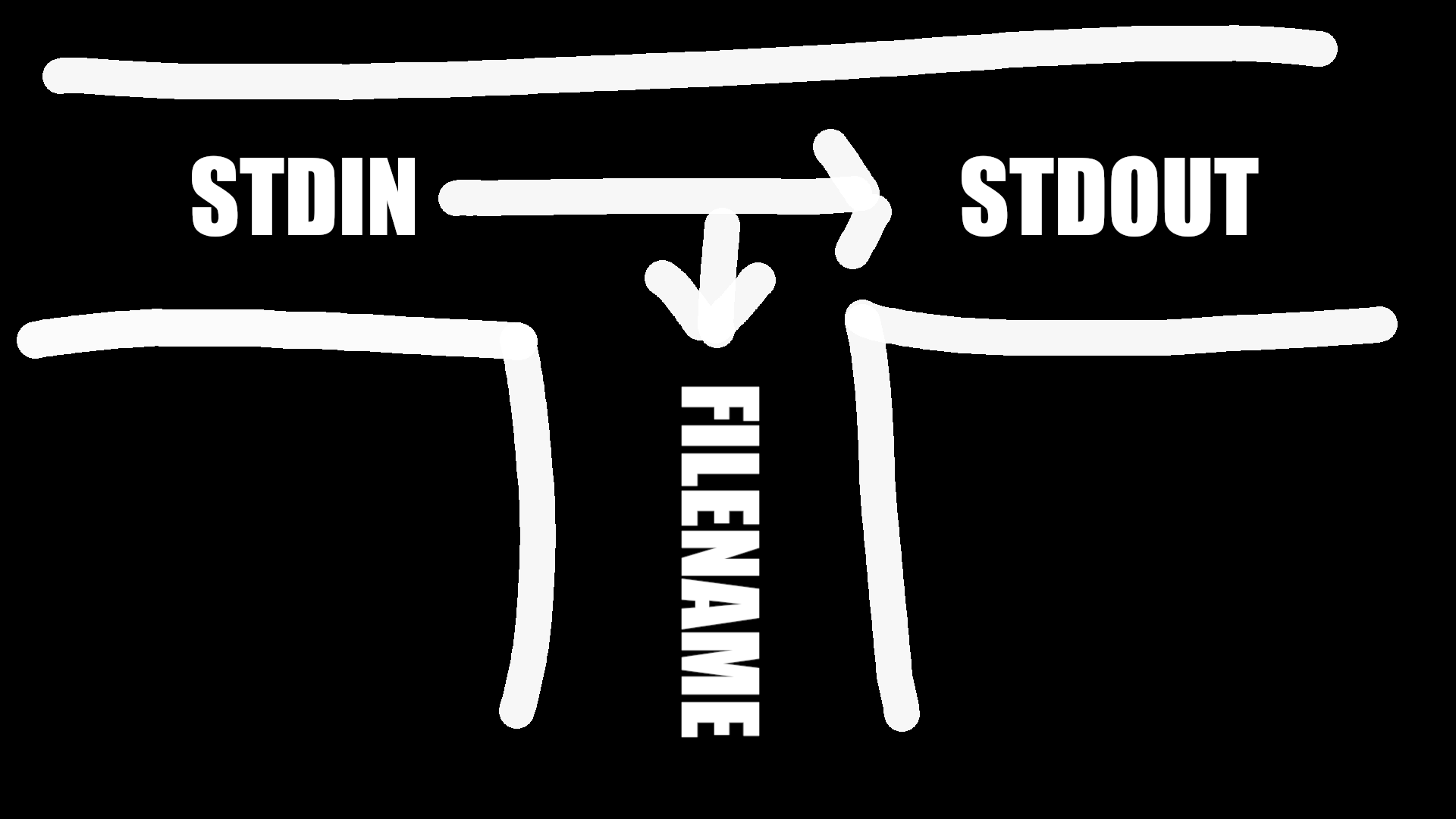

More on tee

tee copies stdin to stdout for one or more files.

• Captures intermediate results from a filter in the pipeline.
• Remember, pipes can have multiple readers and writers!

Format: tee [ -ai ] file-list

• -a: append to output file rather than overwrite, default is to overwrite (replace) the output file
• -i: ignore interrupts
• file-list: one or more file names for capturing output

Example: Using tee to store the state of a pipe

ls | head -10 | tee first_10.txt | tail -5

• This line prints to stdout the last five lines (tail -5) of the first 10 lines (head -10) in ls.
  • It also captures the result of pipe after doing head -10 and stores it in first_10.txt

More on cut

Note: Delimited data

• Data can be delimited by a variety of symbols (e.g., tabs, bars, colons). When using cut, make sure you’re using the right delimiter!

cut prints selected parts of input lines.

• Can select columns
• Can select a range of character positions

Options:

• -f listOfCols: print only the specified columns on output
  • Can be given as range (e.g., 1-5) or comma-separated (e.g., 1,3,4,5)
• -c listOfPos: print only chars in the specified positions
  • Can be given as range (e.g., 1-5) or comma-separated (e.g., 1,3,4,5)
• -d c: use character c as the column separator
  • Defaults to <tab>

Example: Using cut

$ cat /etc/passwd | cut -d: -f1

• Print the first column of the /etc/passwd file (only usernames)

$ cat /etc/passwd | cut -d: -f1,7

• Print the first and last column of the /etc/passwd file (username and default shell)
• Note how there’s no way to refer to the last column without counting the columns.

More on paste

paste displays several text file “in parallel” on output.

• If the inputs are files $, \varsigma, and \upsilon:
  • Line 1 will be composed of the first line of $, first line of \varsigma, and first line of \upsilon.
  • Line 2 will be composed of the second line of $, second line of \varsigma, and second line of \upsilon.
  • etc.
• Lines from each file are separated by a tab character.
• If files are different lengths the output will have all the lines from the longest file, missing lines will have empty strings.

Example: Using paste

Suppose we have the following files:

a.txt
---
1
2

b.txt
---
3
4

c.txt
---
5
6

$ paste a.txt b.txt c.txt
1       3       5
2       4       6

Example: Using paste to reverse a cut

(cut -f1 -d: < /etc/passwd) > 0_usernames.txt
(cut -f2 -d: < /etc/passwd) > 1_encrypted_password.txt
(cut -f3 -d: < /etc/passwd) > 2_uid.txt
(cut -f4 -d: < /etc/passwd) > 3_gid.txt
(cut -f5 -d: < /etc/passwd) > 4_fullname.txt
(cut -f6 -d: < /etc/passwd) > 5_homedir.txt
(cut -f7 -d: < /etc/passwd) > 6_loginshell.txt

• Cut the /etc/passwd file into seven files.

paste -d: 0_usernames.txt 1_encrypted_password.txt 2_uid.txt 3_gid.txt 4_fullname.txt 5_homedir.txt 6_loginshell.txt

• Perfectly reconstruct the /etc/passwd file from its cut components.

More on tr (translating strings)

tr copies stdin to stdout with substitution or deletion of selected characters.

• Reads from stdin

Format: tr [-cds] [string1] [string2]

• -d: delete all input characters contained in string1
• -c: complements the characters in string1 with respect to the entire ASCII character set
• -s: squeeze all strings of repeated output characters in the last operand to single characters
• [string1] and [string2]: Any character that matches a character in string1 is translated into the corresponding character ins string2.
  • Any character that doesn’t match a character in string1 is passed to stdout unchanged.

Examples:

# Replace all instances of s with z
tr s z

# Replaces all instances of s with z and o with x
tr so zx

# Replaces all lower-case characters with upper-case characters
tr a-z A-Z

# Deletes all a-c characters
tr –d a-c

# Change delimiter of /etc/passwd
tr ‘:’ ‘|’ /etc/passwd

# Change text from upper to lower case
cat lowercase.txt | tr '[A-Z]' '[a-z]' > uppercase.txt
# Change text from upper to lower case using named character classes
cat lowercase.txt | tr [:upper:] [:lower:]  > uppercase.txt

# Import DOS files
tr –d ’\r’ < dos_file.txt

Remember: tr translates strings character-by-character, it doesn’t substitute string-by-string.

More on sort

Format: sort [-dftnr] [-o filename] [filename(s)]

• -d: Dictionary order, only letters, digits, and whitespace are significant in determining sort order
• -f: Ignore case (fold into lower case)
• -t: Specify delimiter
• -n: Numeric order, sort by arithmetic value instead of first digit
• -r: Sort in reverse order
• -t: delimiter character
• -k: column
• -o: filename - write output to filename, filename can be the same as one of the input files

Examples:

sort -t: -nk2 /etc/passwd

• Sort the /etc/passwd file numerically (-n), by uid (-k2), using the “:” character as the field separator (-t:).

sort -t: -nrk3 /etc/passwd

• Sort the /etc/passwd file numerically (-n), by gid (-k3), using the “:” character as the field separator (-t:), in reverse order (-r)

More on uniq (list unique items):

uniq removes or reports adjacent duplicate lines.

• Tip: Use sort to make all duplicate lines adjacent.

Format: uniq [-cduif] [input-file] [output-file]

• -c: Precede each output line with the number of time the line occurred in input.
• -d: Only output lines that were repeated.
• -u: Only output lines that were unique.
• -i: Case insensitive comparison
• -f [num]: Ignore first [num] fields in each input line.
  • Field: String a non-blank characters separated from adjacent fields by blanks.
• -s [chars]: Ignore first [chars] characters in each input line.

More on find (apply expressions to files):

Format: find [pathlist] [expression]

• [pathlist]: Recursively descends through this path, applying [expression] to every file.
• [expression]: Expression that gets applied to every file
  • Expressions:
    • -name pattern
      • Find files where the pattern returned true.
        • e.g., -name '*.c'
    • -type ch
      • Find files of type (ch c: character, b: block, f plain file, etc.)
        • e.g., find ~ -type f
    • -perm[+-]mode
      • Find files with given access mode (given in octal mode)
        • e.g., find . -perm 755
    • -user uid/username
      • Find files by owner uid or username
    • -group guid/groupname
      • Find files by group guid or groupname
    • -size size
      • Find files by size.
    • etc…
  • Logical Operations:
    • !: Returns logical negation of expression
    • op1 -a op2: Matches patterns op1 and op2
    • op1 -o op2: Matches patterns op1 or op2
    • (): Group expressions together
  • Actions:
    • -print: Prints out name of the current file (default)
    • -exec cmd: Executes cmd (must be terminated by an escaped semicolon.
      • If you specify {} as an argument, it will be replaced by the name of the current file.
      • Executes once per file
      • e.g., find /tmp -name "*.pdf" -exec rm "{}" ";"

Examples:

# Print all png files in my documents folder
find ~/Pictures -name '*.png'
# Delete all pdf files in my /tmp folder
find /tmp -name "*.pdf" -exec rm "{}" ";"
# Print all files in my videos folder larger than 500MiB
find ~/Videos -size +500M -print
# Print all config files modified in the last day
find ~/.config -mtime 1
# Count words of all config files modified in the last day
find ~/.config -mtime 1 -exec wc -w {} \;

• Note how the * is being escaped to suppress shell interpretation.
